Code
|
Sensor & Size(mm)
|
Pixel(μm)
|
G Sensitivity
Dynamic Range
SN Ratio
|
FPS/Resolution
|
Binning
|
Exposure
|

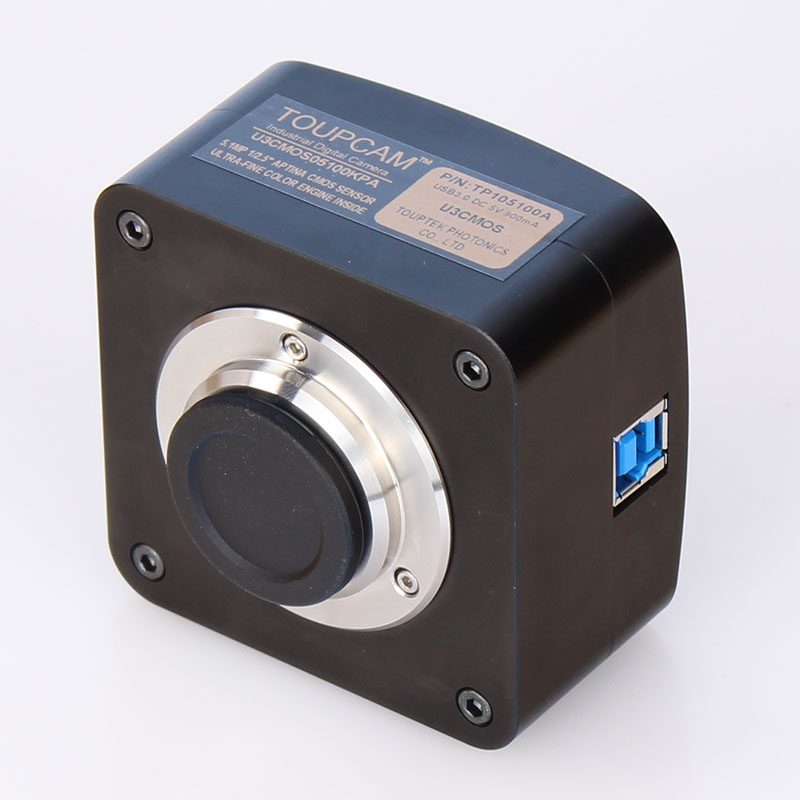

NP-CMOS5 MP -U3
|
5.1M/MT9P006(C)
1/2.5"(5.70x4.28)
|
2.2x2.2
|
1.76v/lux-sec
67.74dB
38.5dB
|
14.2@2560x1922
38.3@1280x960
101.2@640x480
|
1x1,2x2,4x4
|
0.1ms~2000ms
|
OTHER HARDWARE CONFIGURATION
|
Spectral Range
|
380-650nm (with IR-filter)
|
White Balance
|
ROI White Balance/ Manual Temp-Tint Adjustment
|
Color Rendering Technique
|
Ultra Fine Color Engine
|
Capture/Control API
|
Native C/C++, C#, Directshow, Twain, Labview
|
Recording System
|
Still Picture and Movie
|
Cooling System*
|
Natural
|
OPERATING ENVIRONMENT
|
Operating Temperature
|
-10℃~ 50℃
|
Storage Temperature
|
-20℃~ 60℃
|
Operating Humidity
|
30~80%RH
|
Storage Humidity
|
10~60%RH
|
Power Supply
|
DC 5V over PC USB Port
|
SOFTWARE ENVIRONMENT
|
Operating System
|
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit)
OS X (Mac OS X), Linux
|
PC Requirements
|
CPU: Equal to Intel Core2 2.8GHz or Higher
|
Memory: 2GB or More
|
USB port: USB2.0 High-speed Port
|
Display: 17" or Larger
|
CD-ROM
|
