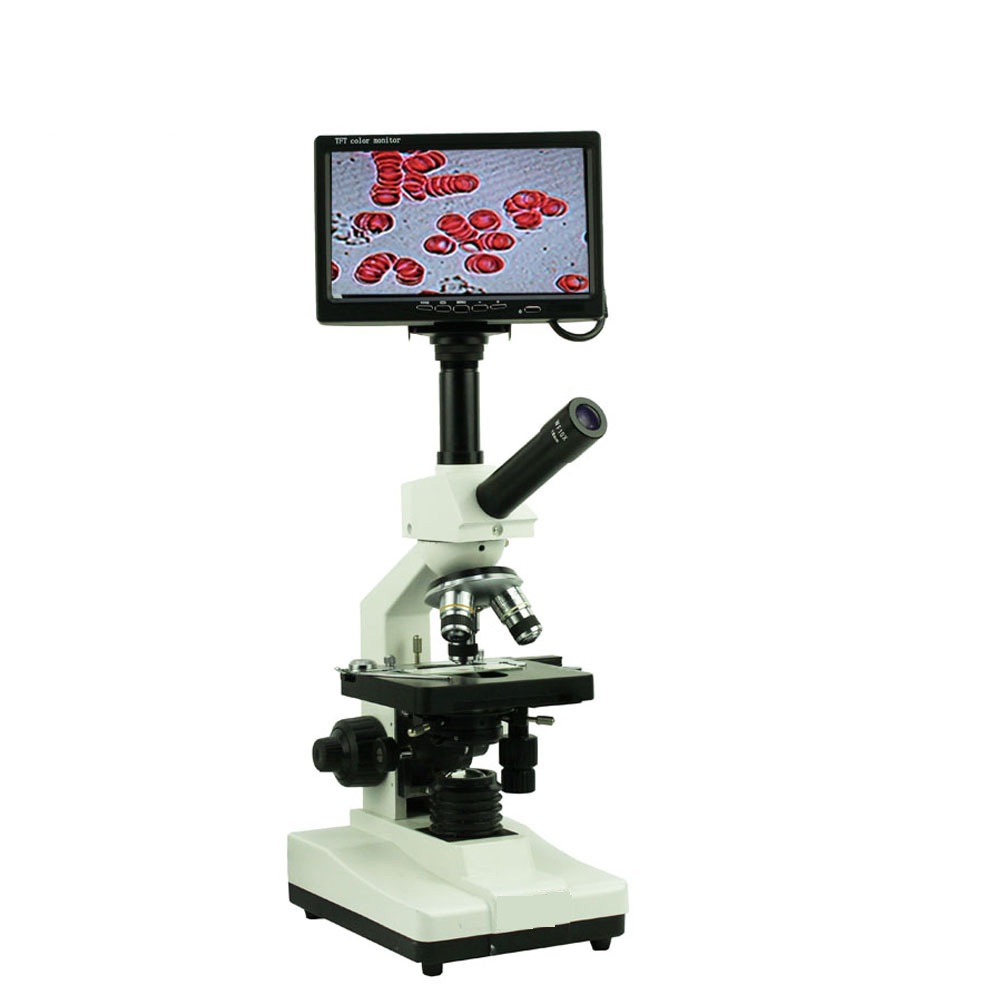

Objective system

Achromatic Objective: 10X, 40X(S),100X(S, Oil).

Eyepiece system

Wide Field Plan-Scope Eyepiece:WF10X /18mm,Huygens 16X.(Optional :WF20X).

Light bar

ABBE Condenser: N.A. 1.25.

Magnification

40x-2000x.

Observation head

Moncular Head,30° Inclined., 360° Rotatable.

Illumination

1W LED lamp.

Stage

Single platform, moving ruler.

Focus system

Coaxial Coarse And Fine Focusing Adjustable .

N.W/set

7kg.

Package

1sets/Carton 37X23X76 cm, Cross Weight/Carton:8.5kg.

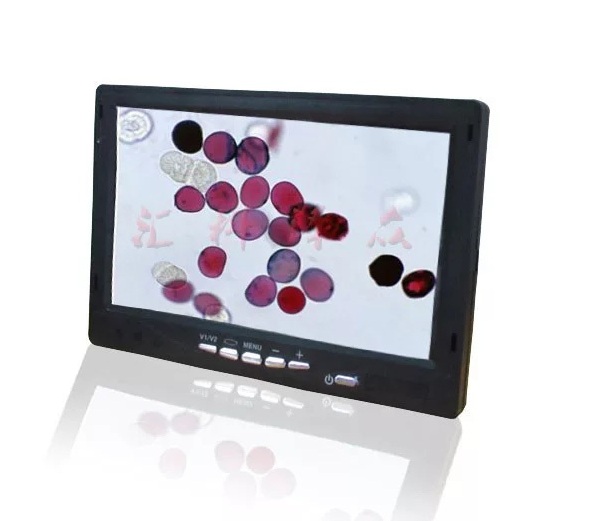

LCD display

7 inch digital LCD screen, 800 * 600 resolution.

True color, color 16777216, the highest support 1024 * 768 pixels.

Support the Pal, NTSC, secam

Software functions

Professional microscopic image analysis software, can be automatic/manual white balance.
