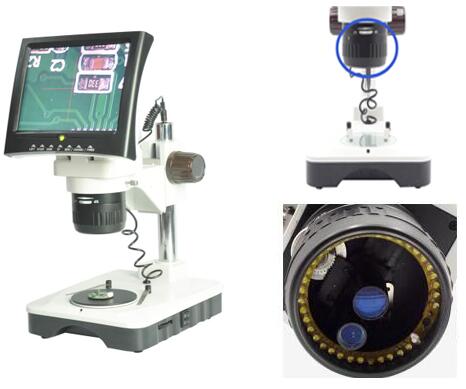

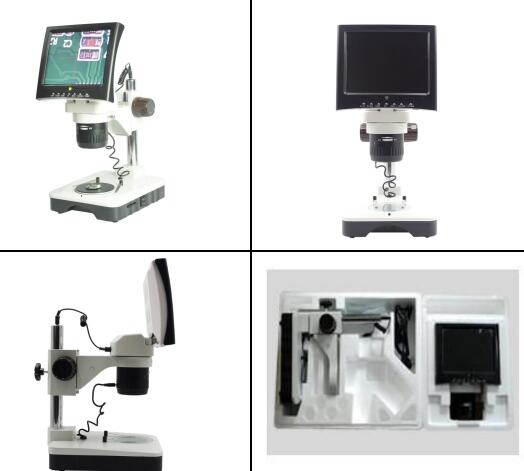

8 Inch Screen Digital LCD Stereo Microscope
|
|
Eyepieces tube
|
Binocular 45°Inclined Tube,360° Rotatable with 55mm~75mm Distance
|
|
Eyepieces
|
WF 10X/20mm with Diopter adjustment in left tube
|
|
Objective
|
Two objectives selected from 1x , 2x , 3x and 4x
|
|
Total Magnification
|
10x~40x
|
|
Working Distance
|
100 mm
|
|
Working Plate
|
95 mm
|
|
Focusing Range
|
103mm
|
|
Illumination
|
Built-in LED Ring Lamp and bottom 3.5V/1W LED Lamp, brightness can be adjusted
|
|
Optional
|
WF15X / WF 20X
|
|
Display
|
8″ LCD, Resolution:800*600,CCD700CTVlines
|
|
Product Size
|
250X200X340mm
|
|
It’s used extensively in electronic component ,manufacturing ,specially ideal for LED ,PCB inspection and other precision industry
|
|
LCD Pad Camera Specification
|
|
LCD
|
8.0" High Resolution LCD, Color
|
|
Pixel Space Between
|
0.213mm
|
|
Visual Angle
|
170/170(H/V)
|
|
Horizontal
|
30-61KHz
|
|
Vertical
|
60-75Hz
|
|
Color
|
16,777,216 Colors
|
|
Highest Mode
|
1024X768@75Hz
|
|
Sync.video Signal
|
H/V Separate, TTL, P or N.0.7Vp-p@75ohm
|
|
Color System
|
PAL/NTSC4.43/NTSC3.58/SECAM
|
|
Sound System
|
BG/DK/I/M
|
|
Video Input
|
1.0Vp-p@75ohm
|
|
Audio Input
|
500mVrms
|
|
Power Supply
|
DC12V
|
|
Power Consumption
|
9W
|
|
Energy-Saving
|
<1.0W
|
|
Packing Details
|
1pcs / foam box
|
|
G.W/N.W
|
8.5 KG / 6.5 KG
|
|
Mea
|
46x41x44cm
|
|
