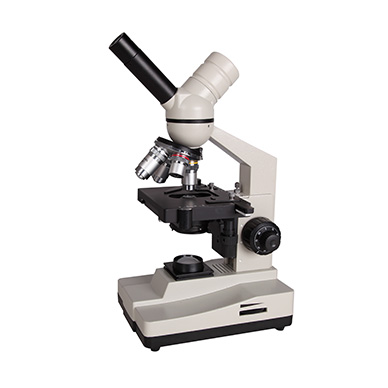

Viewing Head
|
Monocular 45° Lnclined Tube Rotatable 360°，Internal Active 2.0 Mega
|
●
|
|
Eyepiece
|
WF10X
|
●
|
|
Objective
|
10X 40Xs 100Xs(oil)
|
●
|
|
Nosepiece
|
Triple Nosepiece
|
●
|
|
Condenser
|
Abbe Condenser NA1.25 with Diaphragm
|
●
|
|
Focusing System
|
Coaxial Coarse and Fine 20mm
|
●
|
|
Stage
|
Layer Mechanical Stage 120mmX120mm
|
●
|
|
Illumination
|
0.5W LED Electrical Illumination Adjustment
|
●
|
|
Technical Parameters of Inner Digital CMOS Chip
|
Adaptor Ring
|
USB2.0
|
●
|
|
Sensor
|
CMOS2.0M pixels
|
●
|
|
Most Resolution
|
1600X1200
|
●
|
|
Frame Rate
|
CIF30f/s，VGA15f/s
|
●
|
|
Image Format
|
RGB24
|
●
|
|
Color
|
Max1.64 Million 24 Bit Color
|
●
|
|
Video Model
|
1600X1200
|
●
|
|
Sensitivity
|
1.0V/lux~sec@550m
|
●
|
|
Spectrum Response
|
400nm~1000nm
|
●
|
|
Max Range
|
＜72db
|
●
|
|
White Balance
|
Auto/Manual
|
●
|
|
Electrical Source
|
PC USB2.0Port
|
●
|
