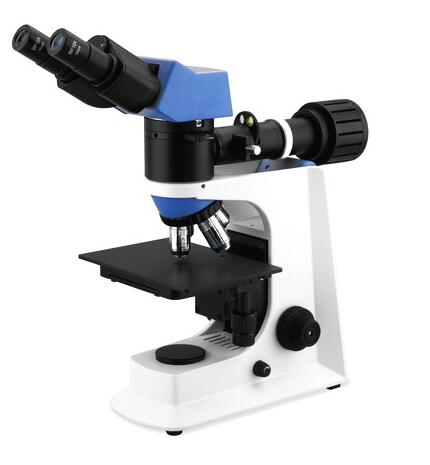

It is suitable for all common routine applications and produces excellent images with its powerful 30 W halogen lighting
-
As standard, these microscopes are fitted with infinitely corrected planachromatic lenses
-
A trinocular head is available as an option, so that you can connect a camera
-
A revolving unit for up to 4 lenses and a large specimen stage are included with delivery as standard
-
The following optional accessory items are available: Various eyepieces, LWD lenses for a large working distance as well as a complete polarisation kit etc.
-
A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely
-
|
Items
|
Specification
|
NP-IMM002
|
|
Eyepiece
|
WF10×-18mm
|
●
|
|
Reticule Eyepiece WF 10×-18 mm (0.1mm)
|
●
|
|
Long Working Distance

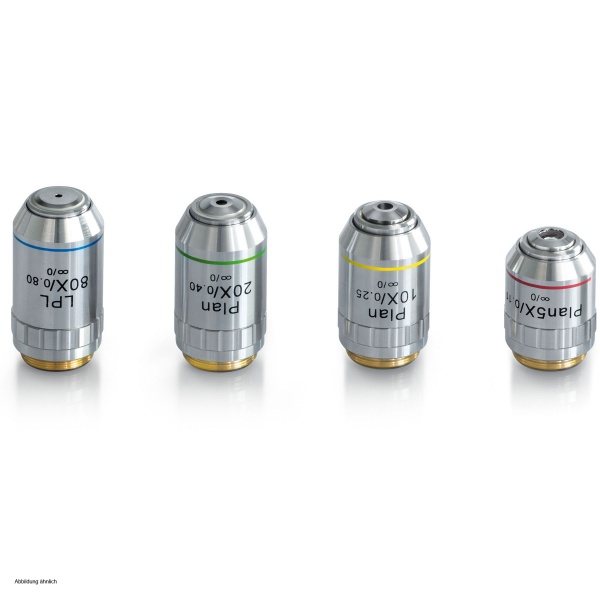

Infinity Plan Objective
(no cover glass)
|
LPL 5×/0.13
|
W.D=16.04mm
|
●
|
|
LPL 10×/0.25
|
W.D=18.48mm
|
●
|
|
LPL 20×/0.4
|
W.D=8.35mm
|
○
|
|
LPL 50×/0.7
|
W.D=1.95mm
|
●
|
|
LPL 80×/0.8
|
W.D=0.85mm
|
○
|
|
LPL 100×/0.9(Dry)
|
W.D=1.10mm
|
○
|
|
Seidentopf Binocular Head
|
Inclined 30°,Rotatable 360°,
Interpupilary Distance: 48 -75mm
|
●
|
|
Seidentopf Trinocular Head
|
Inclined 30°,Rotatable 360°,
Interpupilary Distance: 48 -75mm
Light Distribution 80:20
|
○
|
|
Nosepiece
|
Quadplex
|
●
|
|
Mechanical Stage
|
Stage Size: 200×150mm, Travel : 76mm×52mm
Coaxial Coarse and Fine Focusing Knobs
|
●
|
|
Reflection Illumination
|
6V/20W Halogen Lamp
|
|
|
6V/30W Halogen Lamp
|
●
|
|
Filter
|

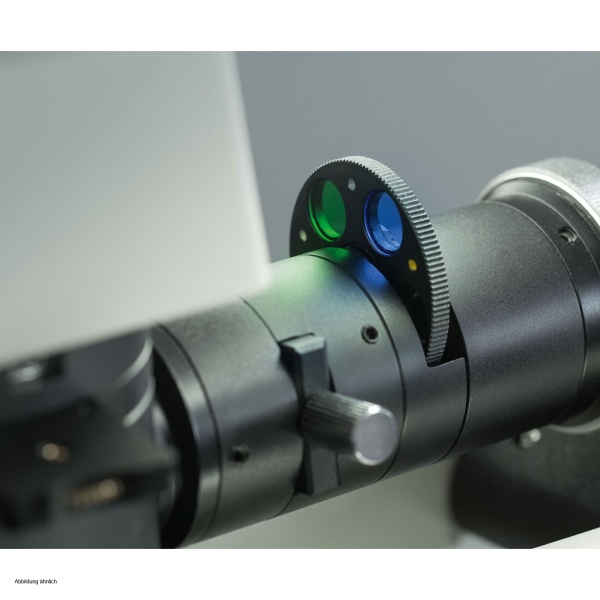

Five-hole filter unit(blue, green, amber, grey, empty)
|
●
|
|
Polarizing Attachment
|
Analyzer/ Polarizer
|
○
|
|
C-mount
|
1×
|
○
|
|
0.5X （Focus Adjustable）
|
○
|
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
-
Packaging & shipping
Dimensions packaging (WxDxH):570 mm x 275 mm x 450 mm
Gross weight:10.500 kg
Net weight:8 kg

|
