	NP-IMM001

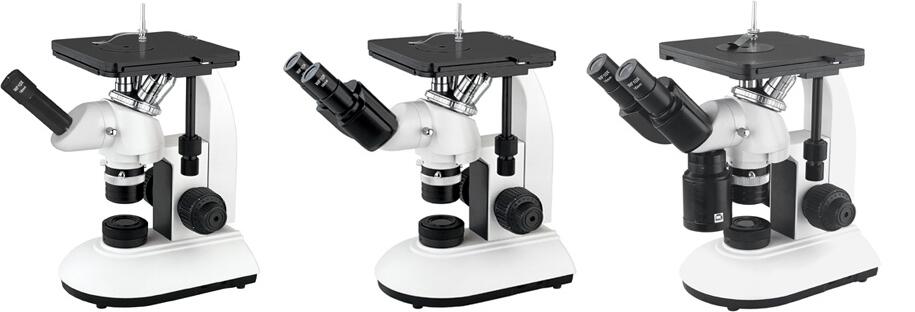

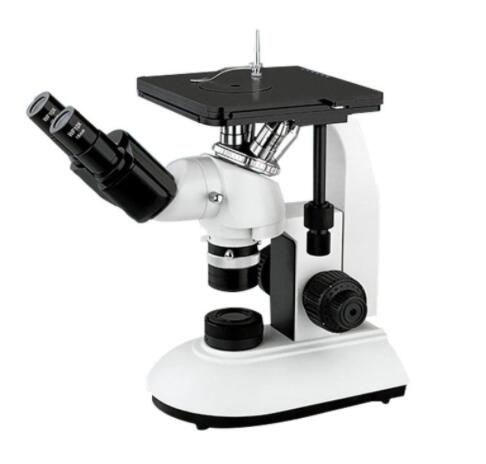

	Binocular Inverted Metallurgical microscope Send Inquiry

It is suitable for all common routine applications in training companies or workshops and produces excellent images

As standard, these microscopes are fitted with planachromatic lenses

A revolving unit for up to 4 lenses and a large specimen stage -
Size: 180×180mm，Travel Range: 30×30mm，

Round slide size：φ110mm

are also included with delivery as standard

The following optional accessory items are available: LWD lenses for a large working distance as well as various stage inserts etc.

A powerful 3W LED light is available to provide the lighting

A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design

Items	Specifications	NP-IMM001M	NP-IMM001
Eyepieces	WF 10×-18 mm	●	●●
Eyepieces	WF 10×-18 mm(adjustable,Reticule 0.1 mm)	○	○
Metallurgical LWD Infinity Plan Objectives	LPL 5×／0.13 W.D=16.04mm	●	●
	LPL 10×／0.25 W.D=18.48mm	●	●
	LPL 20×／0.40 W.D=8.35mm	○	○
	LPL 50×／0.70 W.D=1.95mm	●	●
	LPL 80×／0.80 W.D.= 0.85mm	○	○
	LPL 100×／0.90(Dry) W.D=1.10mm	○	○
Binocular Head	Inclined 45º		●
Monocular Head	Inclined 45º	●
Nosepiece	Quadplex	●	●
Mechanical Stage	Size: 180×180mm，Travel Range: 30×30mm， Round slide size：φ110mm	●	●
3W-LED llumination	Input voltage：100V～240V	●	●
12V/20W Ilumination	Input voltage：100V～240V	○	○
Filters	Blue, Green, Grey	●	●
Micrometer	Division 0.01mm	○	○

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

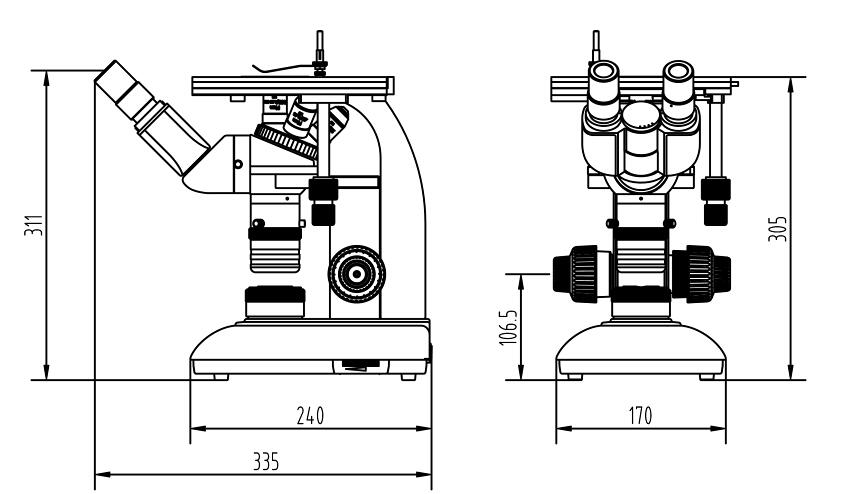

Packing Size: 437mm×268mm×522mm Gross Weight: 8 kgs Net Weight: 7 kgs

Packaging & shipping

Dimensions packaging (WxDxH): 437 mm x 268 mm x 522 mm


Gross weight: 8kg

Net weight: 7 kg
