Specification:
|
|
|

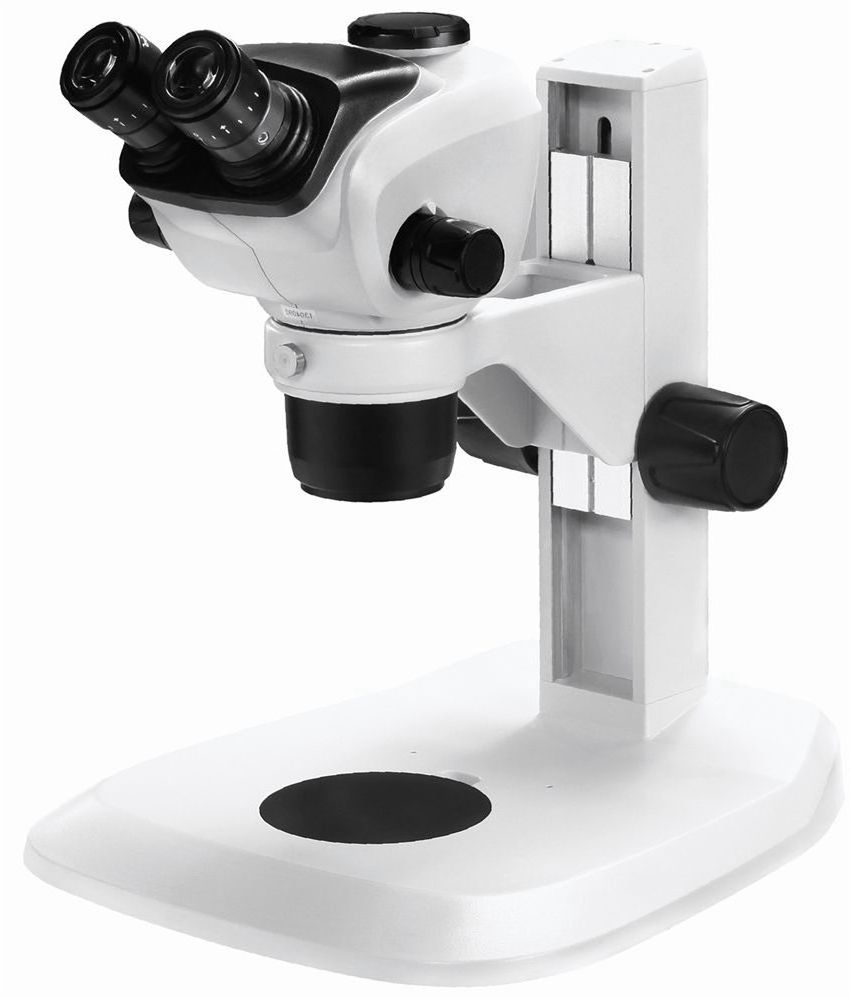

NP-SZM6550T
|
|
Drawing Tube
|
Binocular Viewing Head, Inclined at 35°
|
●
|
|
Trinocular Viewing Head, Inclined at 45°
|
○
|
|
Eyepiece
|
Extra wide field eyepiece EW10×/23
|
●
|
|
WF15×
|
○
|
|
WF20×
|
○
|
|
Zoom Objective
|
0.66×-5.5×
|
●
|
|
Zoom Ratio
|
7.8：1
|
●
|
|
Working Distance
|
110mm
|
●
|
|
Interpupillary Distance
|
50-75mm
|
●
|
|
Auxiliary objective
|
0.5×
|
○
|
|
2×
|
○
|
|
Glass Insert
|
Glass Insert, Diameter 100mm
|
●
|
|
Illumination
|
Incident Illumination 100V-240V/ LED
|
●
|
|
Transmitted Illumination 100V-240V/ LED
|
●
|
|
Photo Attachment
|
|
○
|
|
Video Attachment
|
|
○
|
|
Note: ● Standard Outfit, ○ Optional
|
|
