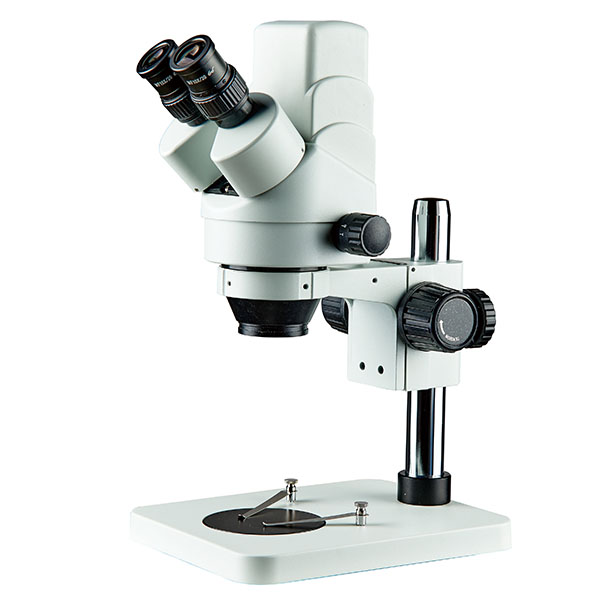

Magnification
|
Standard：7X-45X，Optional 3.5X-270X，
|
|
Eyepieces
|
Standard：10X/20mm，It’s convenient of observers wearing glasses for Wide field of view, wide Angle, high point of view,
|
|
Eyepieces optional
|
10X/20mm，15X/15mm，20X/10mm，25X/9mm，30X/8mm
|
|

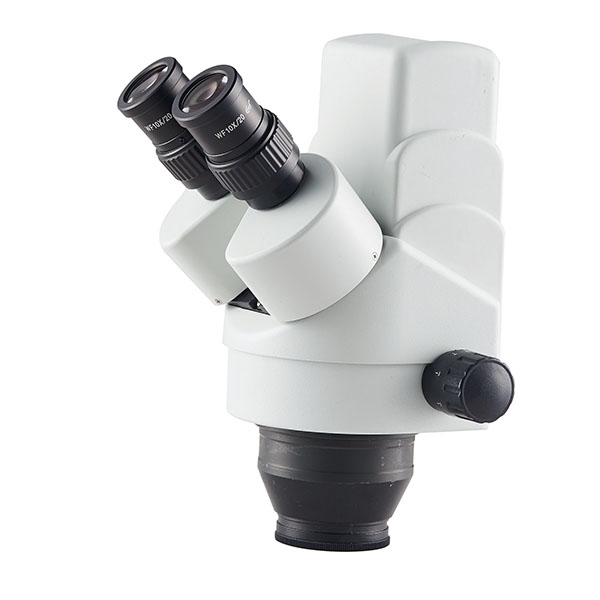

Viewing Head
|
Seidentopf Binocular Viewing Head, Inclined at 45º ,360º rotatale Interpupillary 54mm-76mm；Diopter at both sides(±5)
|
|
Objetive
|
0.7X-4.5X、Zoom Ratio : 6.4:1
|
|

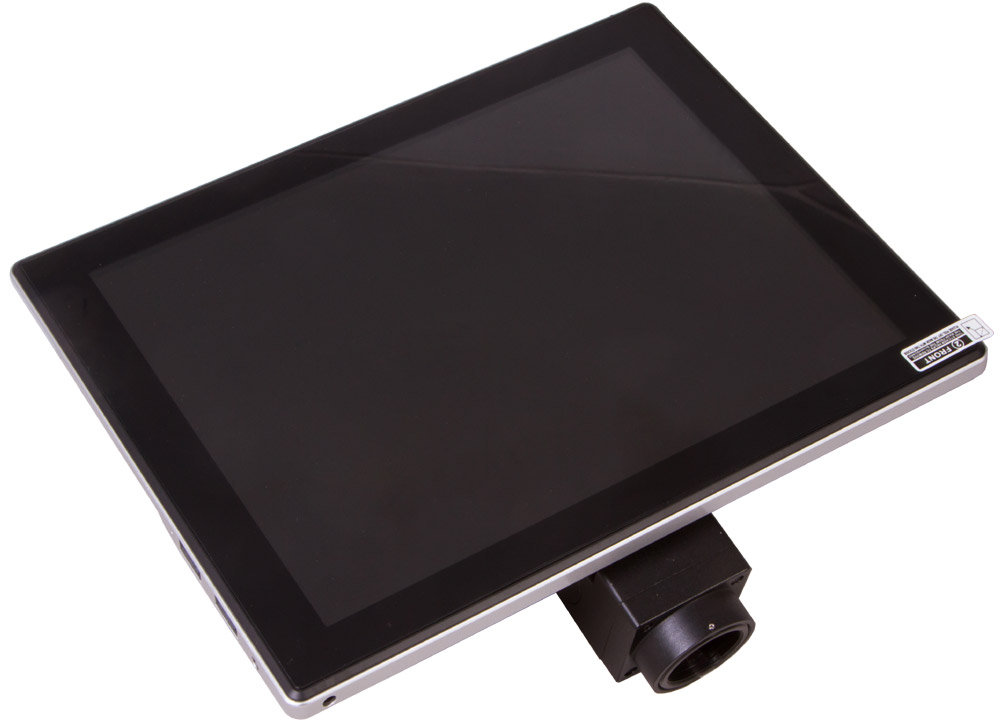

Imaging Device
|
3.0Mpixel 1/2″COMS
|
|
Resolution
|
2048*1536 Pixels
|
|
Pixel Size
|
3.18um*3.18um
|
|
Transmission Rate
|
7f/s@2048*1536
|
|
SNR
|
0.9v/lus-secx
|
|
Scanning System
|
Line by line scan
|
|
Operating System
|
Window2000/XP
|
|
Data Mount
|
USB2.0（480Mbit/sec）
|
|
Power
|
USB2.0 output
|
|
Working Temperature
|
0℃-50℃
|
|
COMS optional
|
130、300、500mp
|

|
